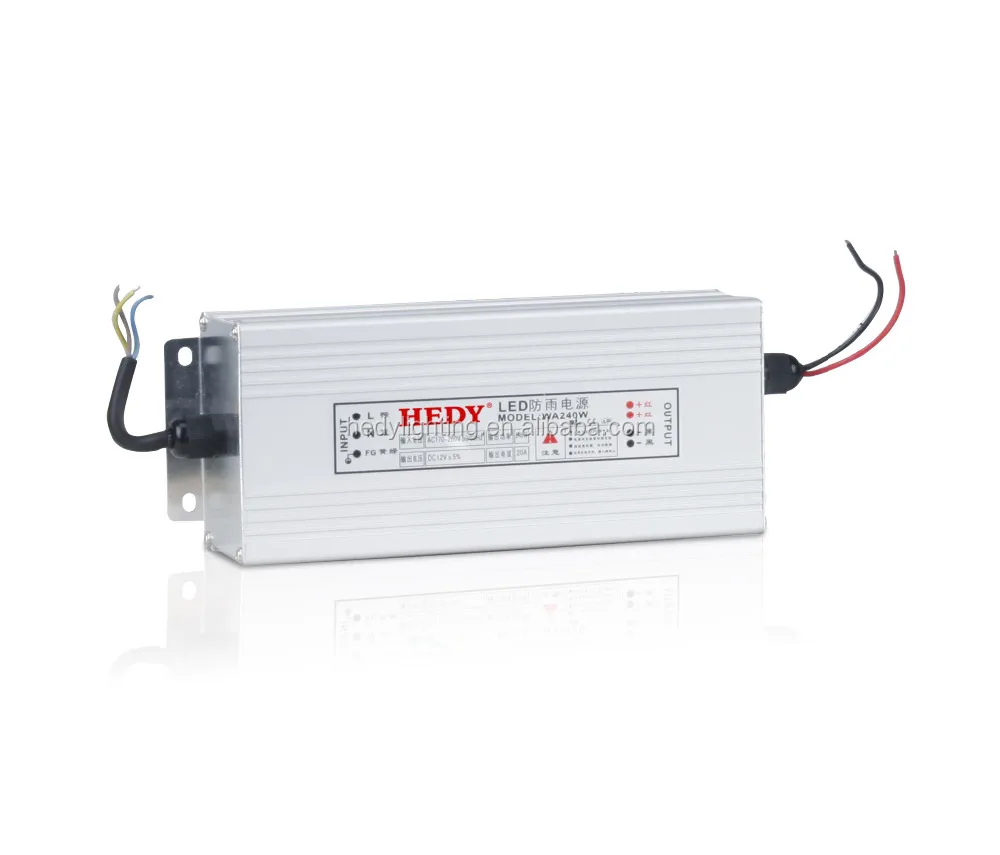

Guangzhou low price AC to DC constant voltage single output 240w 20 amperes 12v Electrical Equipment Supplies

Guangzhou Low Price AC To DC
  • Seller Guangzhou Hedy Lighting Co., Ltd.
  • Min. Order 500 Piece/Pieces
  • FOB Price US $11-15 /Piece

Item Details

Port: Guangzhou
Supply Ability: 100000 Piece/Pieces per Month
Payment Terms: L/C,T/T,Western Union,paypal

Product Description

Product Description

Guangzhou low price AC to DC constant voltage single output 240w 20 amperes 12v Electrical Equipment Supplies description:

Product name: Guangzhou low price AC to DC constant voltage single output 240w 20 amperes 12v Electrical Equipment Supplies

- Rated power: 240W

- Output voltage: DC 12V

- Rainproof

- Ripple & Noise (max.): 100mVp-p

- Over load protection: 110~115% rated output power

- Over voltage protection: 13.2~16.2V

- Over temperature protection: 100°C±5°

- Business type: Manufacturer/Factory

Guangzhou low price AC to DC constant voltage single output 240w 20 amperes 12v Electrical Equipment Supplies features:

v High efficiency up to 82%

v Protection: Short circuit/Overload /Over Voltage/Over Temperature

v Suitable for dry/damp/wet locations

v Bult-in constant current limiting circuit

Guangzhou low price AC to DC constant voltage single output 240w 20 amperes 12v Electrical Equipment Supplies details:

240w Series, include output 5v, 12v, 15v ,24v and 36v.

Model HA-240W-5V HA-240W-12V HA-240W-15V HA-240W-24V HA-240W-36V
Output DC Voltage 5V 12V 15V 24V 36V
Rated Current 48A 20A 16A 10A 6.5A
Current Range 0~48A 0~20A 0~16A 0~10A 0~6.5A
Rated Power 240W 240W 240W 240W 234W
Ripple & Noise (max.) 100mVp-p 100mVp-p 150mVp-p 150mVp-p 150mVp-p
Voltage Adj. Range 4.75~5.5V 11.4~13.2V 14.3~16.5V 22.8~26.4V 34.2~39.6V
Voltage Tolerance ±2.0% ±2.0% ±2.0% ±1.0% ±1.0%
Line Regulation ±1.0% ±1.0% ±1.0% ±0.5% ±0.5%
Load Regulation ±5.0% ±5.0% ±5.0% ±5.0% ±5.0%
Setup,Rise time 600ms,30ms at full load
Hold Up Time(Typ.) 13ms at full load
Input Voltage Range 90~132VAC/180~264VAC
Frequency Range 47~63HZ
Efficiency(Typ.) 82% 82% 85% 87% 90%
AC Current (Typ.) 7A/115VAC 4A/230VAC
Inrush Current (Typ.) 30A/115VAC 60A/230VAC
Leakage Current <2mA / 240VAC
Protection Over Load 110~115% rated output power
Protection type: Shut down O/P,re-power on to recover
Over Voltage 5.5~6.75V 13.2~16.2V 16.5~20.25V 26.4~32.4 39.6~48.6V
Protection type: Shut down O/P,re-power on to recover
Over Temperature 100°C±5°C(5V~12V); 105°C±5°C(15V~36V); TSW1 detect on main power transformer for others
Protection type: Shut down O/P,recovers automatically after temperature goes down
Environment Working Temperature -20~+40°C
Working Humidity 20~90% RH Non-condensing
Storage temp.& humidity -20~+85°C, 10~95%RH
Temp. coefficient ±0.03%/°C (0~50°C)
Vibration 10 ~ 500Hz, 3G 10min./1 cycle,60min.each along X,Y,Z axes
Safety & EMC Safety Standards UL60950-1 approved
Withstand Voltage I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
Isolation Resistance I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25°C/ 70% RH
Others MTBF 10000hrs MIL-HDBK-217F (25°C)
Dimension 233*91*50mm (L*W*H)
Packing 0.65Kg;28pcs/20.4Kg/1.88CUFT
Note 1. All parameters NOT specially mentioned are measured at 220VAC input, rated load and 25°C of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 10uf parallel capacitor.
3. Tolerance: includes set up tolerance, line regulation and load regulation.
4. Derating may be needed under low input voltages.

Guangzhou low price AC to DC constant voltage single output 240w 20 amperes 12v Electrical Equipment Supplies structural drawing(Unit::mm):

Guangzhou low price AC to DC constant voltage single output 240w 20 amperes 12v Electrical Equipment Supplies derating curve:

Guangzhou low price AC to DC constant voltage single output 240w 20 amperes 12v Electrical Equipment Supplies applications:

1. LED display, led strip, nixie tube, street light, lamp;

2. Electrical equipment, Instrumentation

3. LCD, LED, CCTV camera;

4. Digital and electronic products;

5. Communications and security products;

6. Building lighting decoration.

Certificates:

Company Information

Our show room:


Our Switching power supply workshop:






Packaging & Shipping

Guangzhou low price AC to DC constant voltage single output 240w 20 amperes 12v Electrical Equipment Supplies packing & delivery

Lead time: 7-15 days

Delivery method:

ü Express service: FedEx/DHL/UPS/TNT/EMS

ü Air transportation: factory to airport

ü Ocean shipping: factory to port
