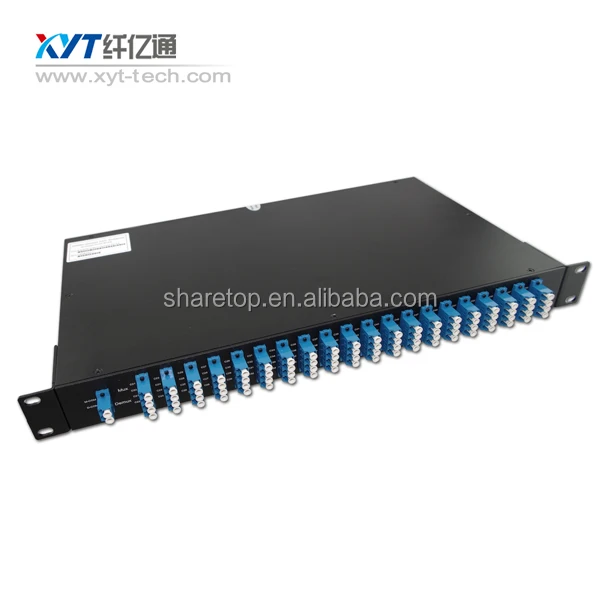

Telecommunication system 1U 19 rack 100G 4CH DWDM Mux/Demux Module

Telecommunication System 1U 19 Rack 100G
  • Seller Shenzhen Sharetop Technology Co., Ltd.
  • Min. Order 20 Piece/Pieces
  • FOB Price US $233 /Piece

Item Details

Port: shenzhen
Supply Ability: 10000 Piece/Pieces per Month
Payment Terms: L/C,T/T,Western Union,MoneyGram,Paypal Escrow

Product Description

Telecommunication system 1U 19 rack 100G 4CH DWDM Mux/Demux Module

Features

Low Insertion Loss

Wide pass band

High Channel Isolation

High Stability and reliability

Applications

Channel Add/Drop

DWDM Network

Fiber Optical Amplifier

Performance Specifications

Parameter

4 Channel

8 Channel

16 Channel

Mux

Demux

Mux

Demux

Mux

Demux

Channel Wavelength(nm)

ITU 100 GHz Grid

Center wavelength Accuracy(nm)

±0.05

Channel Spacing (GHz)

100

Channel Passband (@-0.5dB bandwidth) (nm)

≥0.22

Insertion Loss(dB)

≤1.6

≤2.5

≤3.5

Channel Uniformity(dB)

≤0.6

≤1.0

≤1.5

Channel Ripple(dB)

0.3

0.3

0.3

Isolation(dB)

Adjacent

N/A

>30

N/A

>30

N/A

>30

Non-adjacent

N/A

>40

N/A

>40

N/A

>40

Insertion Loss Temperature Sensitivity(dB/℃)

≤0.005

Wavelength Temperature Shifting(nm/℃)

<0.002

Polarization Dependent Loss(dB)

<0.1

Polarization Mode Dispersion(PS)

<0.1

Directivity(dB)

>50

Return Loss(dB)

>45

Maximum Power Handling(mW)

500

Operating Temperature(℃)

-5~+75

Storage Temperature(℃)

-40~85

Package dimension(mm)

  1. 1. L100 x W80 x H10 ( 2 CH~8CH Module)
  2. 2. L140xW100xH15 (9 CH~18CH Module))
  3. 3. 19 1U Rack

Above specification are for device without connector

Order Information

Configuration

Channel No.

Channel

Pigtail Type

Fiber length

Dimensio(mm)

Connector

M=Mux D=Demux

04=4 Channel

08=8 Channel

16=16 Channel

N=N Channel

……

C20= 1561.42 nm
C21= 1560.61 nm

……

0=250um

1=900um

2=2.0mm
3=3.0mm

1=1m
2=1.5m
3=others

1= L100 x W80 xH10

2=L140xW100xH15

3=19 1U Rack

0=None
1=FC/APC
2=FC/PC
3=SC/APC
4=SC/PC

5=others

Company products

Advantages

Why you choose us?

Firstly,‘High quality is our culture”. All of our products will be specially and carefully tested before delivery to make sure you the our best product. Our product will give you an edge over your competitors.

Secondly, “With us, your buying process will be as easy as a piece of cake.” We are a very professional exporting company.Our staff are very familiar with all kinds of overseas trading terms and custom clearance as well as documents related.

Thirdly,“With us, your money is safe.” Our company offers you a varies of terms of payment,like L/C, T/T, WEST Union, ESCROW, and PAYPAL. You could opt for your favorite one.

Last but not the least, we have gained Alibaba Trade Insurance which is another safeguard for buyers.

Terms of Payment :

Our company offers you a varies of terms of payment,like L/C, T/T, WEST Union, ESCROW, and PAYPAL. You could choose your favorite one.

Delivery Time and Shippment:

3-5 workdays,customized products excepted.

Warranty:

All products have 3 years after-sale service During your first year’s usage,

free replacement or repair will be your right unless it is man-made problem.

Contact us

If you still have doubts about our company or our products, please feel free to inquire us. We will be very delighted to answer all your question.
