Measurement & analysis instrument Coriolis mass flow meter CNG 15

Measurement Analysis Instrument Coriolis Mass Flow
  • Seller Zhejiang Sealand Technology Co., Ltd.
  • Min. Order 1 Set/Sets Trial order is available; we have meters in stock.
  • FOB Price US $1000-2000 /Set

Item Details

Port: Port Ningbo or others
Supply Ability: 300 Set/Sets per Month
Payment Terms: L/C,T/T,Western Union

Product Description

Measurement & analysis instrument Coriolis mass flow meter CNG-15

Specifications

Specifications of Coriolis mass flow meter

Model No.

CNG-15

Max. flow rate

70kg/min

Nominal diameter

15mm( 1/2 inch)

Mass accuracy grade

0.2

Zero stability

0.009kg/min

Repeatability

0.05%

Warranty

2 years

Temperature accuracy

±1°C

Fluid temperature

-200~200°C

Wetted parts

Stainless steel 316L

Sensor housing

Stainless steel 304

Packing

1set/carton

Package size

405*320*355mm

G.W.

16kgs

Specifications of Coriolis mass flow sensor

Gas accuracy

±0.5% for mini flow, ±0.1% for high flow

Liquid accuracy

±0.2% for mini flow, ±0.1% for high flow

Temp. accuracy

±1°C

Pressure drop

≤0.2MPa

MWP

25MPa

Temp. rating

-50°C~+200°C

End connection

Customizable

Ex-mark

Ex[ib]IIBT1~T6 Gb / Ex[ib]IICT1~T6 Gb

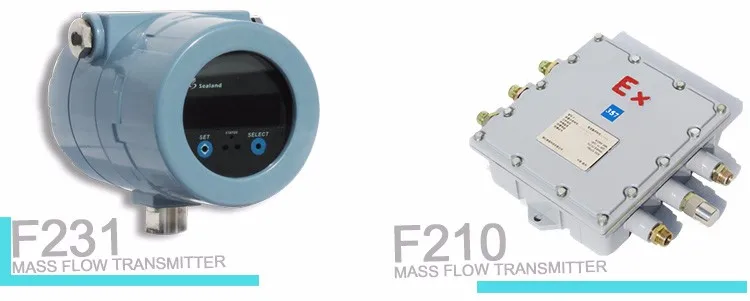

Specifications of Coriolis mass flow transmitter

Temp. rating

-20°C~+50°C

RH

≤95%, non condensed

Atmospheric pressure

86~106KPa

Operating voltage

AC85~265V, DC12~28V

Communication port

RS485 Modbus RTU

Ex-mark

Exd[ib]IIBT4Gb


Related Products

Please click the following pictures for details of each model :)

Model No.

Diameter

(mm)

Max. flow rate

(kg/min)

MWP.

(MPa)

Accuracy grade

Zero stability

(kg/min)

CG-06

06

18

4

0.2

0.003

CNG-15/CG-15

15

70/50

25

0.2

0.009

CG-25

25

200

4

0.2

0.017

CG-50

50

1000

4

0.2

0.038

CG-80

80

3000

4

0.2

0.115

CG-100

100

5000

2.5

0.2

Under development

Applications of Coriolis mass flow meter

Sealand Coriolis flow meter family measures direct mass flow rates of liquids and gases in virtually all applications without special calibration. Safety, reliability, quality, and our innovative technologies enables us to provide a broad range of industry-specific products and services — and the expertise to put them to work for you.

  • Alternative Energy
  • Oil & Gas
  • Chemical
  • Food & Beverage
  • Industrial Energy
  • Life Sciences
  • Marine
  • Metals and Mining
  • Power
  • Pulp & Paper
  • Refining
  • Water & Wastewater
  • Others

Alternative of Emerson Micro Motion CNG050 and E+H LPGMass.

Advantages of Coriolis mass flow meter

1. Maintenance-free

2. HIgh accuracy & reliability

3. Shows many parameters simultaneously, such as mass flow, temperature & desity

4. Compact design with no moving parts, no special mounting and no flow conditioning required.

Installation of Coriolis mass flow meter

It is highly recommended to install as follows, for different fluid.

Certificates

CE, and all Chinese certificates approved.

Packing

Packed with specific foam, professional & safe.

About Sealand

Zhejiang Sealand Technology Co. Ltd. is a professional hi-tech enterprise, specialized in development, production & sales of Coriolis mass flow meter, located in Binhai ETDZ, Wenzhou, Zhejiang, China.

Standardization line

The standardization line is equipped with world famous brand METTLER TOLEDO instrument with accuracy 0.02%, and other devices imported from South Korea, national institute approved.

Mass production of Coriolis mass flow meter

Why Sealand?

1. Sealand is professional, with senior engineers from the first research team in this field in China, and junior one from college, to keep improving.

2. Sealand is experienced. It started to research and develop in 1990. All employees are stable here; even the production-line workers have worked here for more than 5 years.

3. Sealand strictly controls the quality from raw material to finished products, and all products will be inspected and tested for 3 times before shipment.

4. The warranty is 2 years, but technical support is always available.

FAQ.


1.Customer: May I release trial order, 1 pc for example?
Sealand: Certainly, trial order is acceptable. In general, we have common models in stock. Sample will be sent within 1 week, after payment is received.


2.Customer: Could you design according to my requirements?
Sealand: Of course, our team will design for you, to make our mass flowmeter work perfectly at your end.
