Gigabit Telecommunication Grade Multi And Single Mode FO Ethernet MC

Gigabit Telecommunication Grade Multi And Single
  • Seller Shenzhen Yuhang Communication Technology Co., Ltd.
  • Min. Order 1 Piece/Pieces
  • FOB Price US $10-20 /Piece

Item Details

Port: Shenzhen
Supply Ability: 50000 Piece/Pieces per Month
Payment Terms: L/C,T/T,Western Union,MoneyGram,PayPal

Product Description

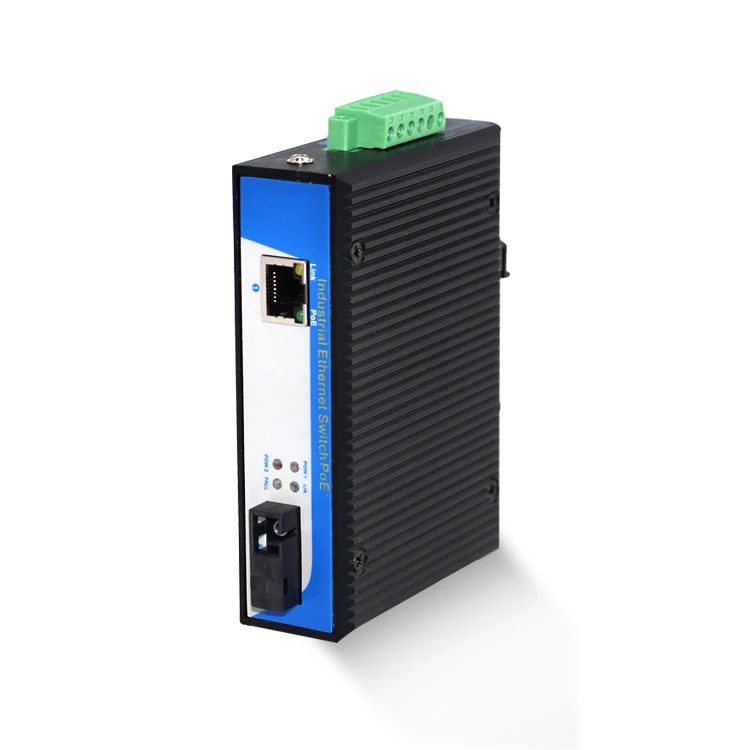

Gigabit Telecommunication Grade Multi And Single Mode FO Ethernet MC

Features

♦2 Port Gigabit Inustrial Ethernet switch/Industrial Switch/Industrial POE Switch/

Industrial Media Converter/Industrial Fiber Switch

♦2-Port 10/100/1000Base POE ports + 1 (100/1000M) SC Slots
♦Supports both IEEE 802.3af and 802.3at, and every port PoE configuration function
♦G.8032, support <50ms industrial quick ring protection

♦52 VDC (10 ~58VDC), dual redundancy power input, 6-pin 5.08mm-gap plug-in terminal, ensure power working without stop. When one power shut down, the other keeps working

♦DIN-Rail or Wall-mounted install

Specification
Specification
Product Name 2 Port 10/100/1000M Industrial PoE Switch
Product Model

YH612GP-SC

Interface 2x 10/100/1000Base-T ports POE + 1x Gigabit SC slots
Network Protocols

IEEE802.3 10BASE-T; IEEE802.3i 10Base-T;IEEE802.3u;100Base-TX/FX;

IEEE802.3ab ; IEEE802.3z ; IEEE802.3x; IEEE802.3af, IEEE802.3at

PoE Specification

PoE Standard: IEEE802.3af/ IEEE802.3at

PoE ports: 1-2 ports support PoE

Each PoE Port: Max. 30 Watts

Power Pin Assignment:1/2+;3/6-

Output Voltage: DC52V

Fiber Media Multi-mode: 2km; Single-mode: 20/40/60/80KM

Performance Specification

Bandwidth: 10Gbps

Packet Buffer Memory:1M
Packet Forwarding Rate:1488000pps/port
MAC Address Table: 8K

Forwarding Mode Store-and-Forward
Protection Lightening protection, IP40 protection
Power Supply Input Voltage: DC52V (10~58V) /Terminal block
Other Specifications
Working Environment Working temperature: -40~75℃ ; Storage temperature: -40~85℃

Relative Humidity: 5%~95 %( no condensation)

Shell

IP40 protect grade, metal shell
Installation DIN-Rail or Wall mounts
Weight & Size Product Weight: 0.5 KG

Product size (L×W×H): 127mm× 107mm× 33mm

Warranty

5-years
