Pipe profile cutting machine/CNC plasma round pipe square machine

Pipe Profile Cutting Machine CNC Plasma
  • Seller Shandong Kasry Intelligent Equipment Co., Ltd.
  • Min. Order 1 Set/Sets
  • FOB Price US $1-69000 /Set

Item Details

Port: Qingdao,Tianjin or customer specified port
Supply Ability: 20 Set/Sets per Month
Payment Terms: L/C,T/T,Western Union

Product Description

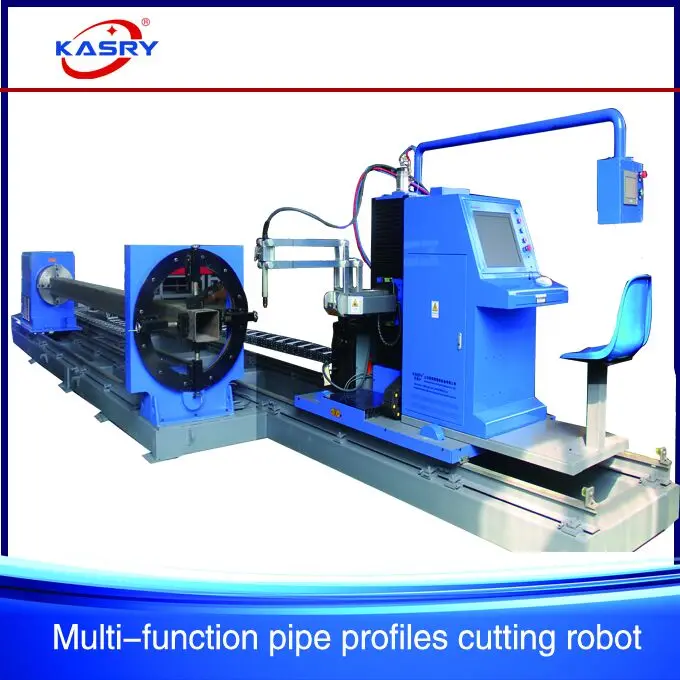

KASRY KR-XF8 8 axis all profiles & pipes CNC cutting machine

CNC pipe profile cutting machine is special CNC equipment which is used for cutting metal pipe automatically.It can cut round pipe , square tube , rectangular tube ,Oval pipe , H beam , I beam ,U beam ect .It can cutting and beveling , widely used for steel structure ,marin engineering ,building construction , vessel pressure ect industry .

Features and advantage

1.Eight CNC axes ,can cut round pipe , square pipe , Irregular pipe , H/U/L/I-beams profile cutting , can cut and bevel , use one machine can do these all , it reduce the cost .

2.Our software , easy to operate , training time is short , only need input wall thickness , bevel angle , threading length on the software , it can cut directly with the graphics in the gallery .

Software with better compatibilty , support TEKLA,3D ,3S, STCAD and G code .

software is made by our canada company , in china don't have this software ,and after you buy the machine , can be upgraded lifetime

Technical parameters and moving axis

Model 8 axis all profiles & pipes CNC cutting machine
Cutting range 6m 9m12m(customized)
Machine size 16000*1800*1800mm(customized)
Cutting method Flame/Plasma
Cutting thickness

Flame:6-60mm Plasma:standard 2-14mm

Flame cutting speed 20-70mm/min
Plasma cutting speed 500-3500mm/min
Control system Advantech industrial computer
Plasma Max.hole thickness 14mm
Plasma Max.edge cutting thickness 18mm
Plasma torch crash protection system yes
Driving motor Servo
Software KASRY pipe apply software
Working condition
Working pressure of compressed gas Above 7mpa
Require gas flow of plasma 4500L/H
Working environment Ventilation,no concussion
Power wattage 5KW
Types of gas Acetylence propane

Moving axis Choose cutting axis Range of activities
Y1 axis Pipe rotary driving shaft 360 ° freedom of rotation
Y2 axis Pipe driven rotation shaft 360 ° freedom of rotation
X1 axis The torch moving along the pipe axial horizontal axis The maximum stroke 13000mm
A axis The torch along the pipe axial plane swing axle ±45°
B axis The torch along the pipe radial plane swing axle ±45°
Z axis The rise and fall along the tube axis Travel 350mm
U axis Torch along the axial plane of the front and rear axle pipe fittings Move back and forth 400mm
X2 axis Torch axially along the tube axis horizontal positioning

The maximum stroke 6000 mm

Application pipe type:

round pipe , square pipe , rectangular pipe , Oval pipe , H beam ,I beam ,U beam ect ,can cutting and beveling on the branch end and main pipe .
Appliation industry :

Steel structure , Marin engineering , building construction , pressure vessels ,oil pipeline , nature gas pipeline ect industry

Factory Visit:

Our Services
1.One year warranty,free maintenance throughout service time..
2.free technical support through Email and telephone.
3.Training and installation on-site if required.

Why choose us
1. Canadian Professionaloptimize CNC system has , AutoCAD version of the project design can be directly generated CNC machine code . Dimensional simulation operation, the node is expanded , long tube splitting , fittings optimization , oversized EGES DXF SAT and STL and other software compatibility
2. A userfriendly design , casting parts precision machining equipment to ensure highprecision, high stability , high life expectancy .
3. One year warranty,free maintenance throughout service time.
4.Our software can be free upgraded lifetime .
5.First manufactuer cut square rail and other profile
