SAA CE TUV UL IP65 IK10 Round 20W Surface Mounted LED Bulkhead Light

SAA CE TUV UL IP65 IK10
  • Seller Shenzhen ILED Tech Company Limited
  • Min. Order 10 Piece/Pieces
  • FOB Price US $17-27 /Piece

Item Details

Port: Shenzhen
Supply Ability: 2000 Piece/Pieces per Day
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,Paypal , Wechat or Cash

Product Description

Product Description

SAA CE TUV UL IP65 IK10 Round 20W Surface Mounted LED Bulkhead Light

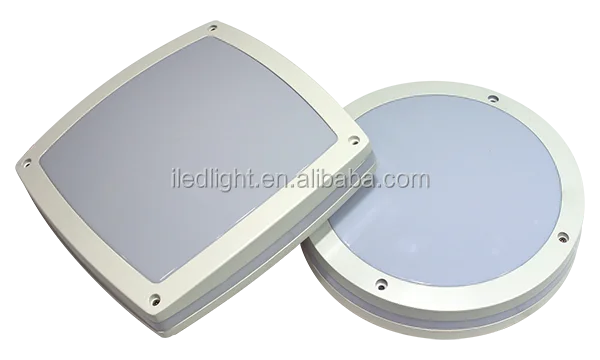

Exterior LED Lights are available in round or square housings and with Triac Dimmable, 0-10V Dimmable, DALI Dimmable, Motion Sensor, Dimmable Standby Sensor and Emergency options.

Provide an attractive but robust solution for providing lighting to walkways, tunnels, storage areas, car parks etc. The enclosure is sealed to IP65 and houses a geartray with HF electronic driver and multi-circuit LED board. The Polycarbonate lens and halo-effect side band provide excellent photometric performance. The robust Cast Aluminium & Polycarbonate enclosure is vandal resistant and provides protection to IP65. The units are ideal for interior and exterior environments.

Main Parameters

Model
Watts
Lumen
Size
ILED-BH-R20W
20W
1500LM
Ф300x90mm
ILED-BH-R30W
30W
2200LM
Ф300x90mm

Other Parameters

Input
100-240VAC
LED Source
LM80 LED
Material
Aluminum + PC
PF
>0.9
CCT
2800-6000K
CRI
>80
Electrical Classification
ClassI
IP Class
IP65
Lumen Effective
80LM/W
Body Color
White,Black, Silver Gray
Warranty
3 years
Ceritification
CE,RoHS,SAA,TUV,UL

Packaging Parameters

Model
Carton Size
Quanitites/Carton
Gross Weight / Carton
ILED-BH-R20W
640x540x340mm
10 pieces
16.8 KGS
ILED-BH-R30W
640x540x340mm
10 pieces
16.8 KGS

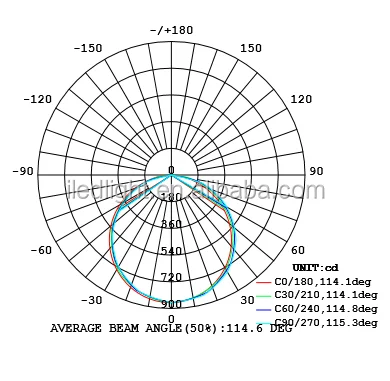

Distribution Curve of 20W SAA CE TUV UL Round 20W IP65 IK10 Surface Mounted Wall Exterior LED Lights


Distribution Curve of 30W SAA CE TUV UL Round 20W IP65 IK10 Surface Mounted Wall Exterior LED Lights
